Equipment - Punching
Amada EMK 3610 NT Electric Punch Press



Press capacity:
Sheet size:
Max. sheet thickness:
Max sheet weight:
Punching accuracy:
Hit Rate:

Max. ram stroke length:
Turret speed:


33 Tons.
196.85" x 60"
0.187"
330 lbs.
+/- 0.0027"
-- X: 500 HPM
-- Y: 330 HPM
1.45"
30 rpm
Amada EMK 3610 NT Punch Press
Bar
Amada 357 Pega 44 Station Auto-Index CNC Turret Punch Press



TYPE 30 Tons Capacity Bridge Frame
Sheet Size 1270 X 1830
Sheet Size I Reposition 1270 X 3660
Max. Material Thickness 6.35 MS
Max. Material Weight 100 KG
Strokes per min. 350
No. of Stations 44
Max. Hole Dia. 114.3 mm
Axis Speed 70 M/Per/Min
Turret Speed Bi-Directional 30 RPM

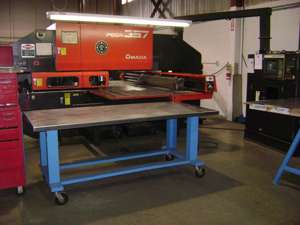

Amada 357 Pega CNC Turret Punch Press
Bar
The Amada 357 Pega @ work

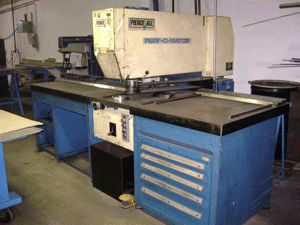

PIERCE ALL 30 TON Single Station Punch



Pierce All 30 Ton Single Station Punch
